Laboratory Centrifuges

| Laboratory Products | Laboratory Centrifuges

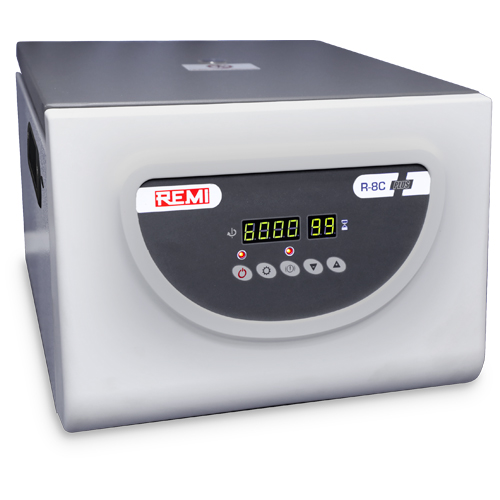

Laboratory Centrifuges model R-8C Plus & R-8M Plus are suitable for routine sample analysis in Medical, Hospital, Pathology and heads and adaptors, those units are truly versatile.

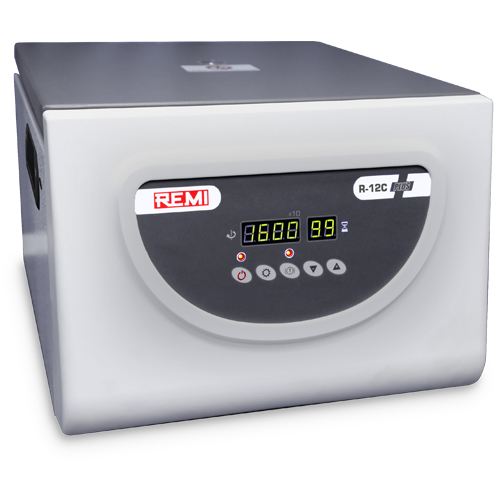

Micro Centrifuges models R-12C Plus are ideal for growing routine application in biochemical and clinical labs, for Hematocrit, Corpuscle Percentage contents in blood, Serum analysis and precipitate separation etc.

Salient Features
  • Automatic rotor identification, ensures operator safety
  • Stainless Steel centrifuge Chamber, easy to clean
  • Brushless Induction motor with variable frequency drive
  • Microprocessor controller with digital display
  • Stable speed output even under unstable voltage conditions
  • Smooth & soft start
  • Low sample temperature rise
  • Inverter fault detection with auto shutdown
  • 7 segment LED display of speed (R-8C Plus/R-12C Plus)

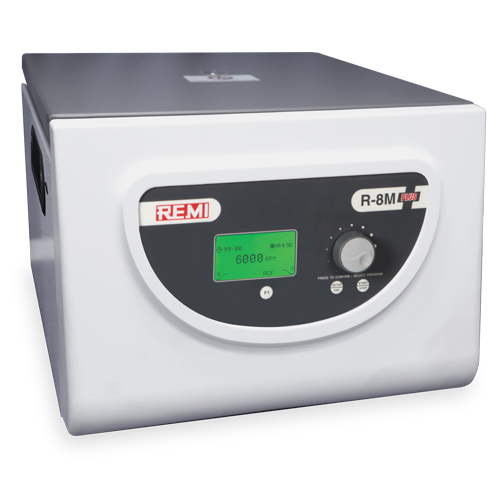

  • Alphanumeric LCD display of speed & RCF (R-8M Plus)
  • Selection of 3 acceleration & deceleration profiles (R-8M Plus)
  • Digital countdown timer & continuous run
  • Safety lid interlock to prevent lid opening during centrifugation
  • Imbalance detection & centrifugation stop with display of error
  • Dynamic brake for quick deceleration
  • Motor overload protection
  • Gas hinge to prevent door falling
  • Emergency lid lock release
  • Last set parameters recall (Useful for repetitive analysis)
  • Wide variety of rotors & reduction adaptors
Technical Data
Models R-8C Plus
R-8 Plus
R-12C Plus
Max. Speed rpm 6000 16000
Max. RCF “g”™ 5070 21000
Max. Capacity ml 400 40
Digital timer range Min 0-99 0-15
Noise 60dB 60 dB
WxDxH mm 380x470x300 380x470x300
Nomenclature method of Rotors & accessories
Alphabets in beginning Numbers in middle
A= Fixed angle rotor 1st numerical = Quantity per insert
S= Swing out rotor 2nd numerical = Tube capacity (ml)
B= Bucket
RA= Reduction adaptor
Examples
S 4-100 (Swing out rotor, 4 tubes of 100ml capacity)
A 24-15 (Angle rotor, 32 tubes of 15ml capacity)
B 9-5 (Bucket, 9 tubes of 5ml capacity)
RA-161F (Reduction adaptor for falcon)

Swingout Rotors (except S 4-100) & Angle Rotors are supplied with suitable SS tubes as carriers

Model Rotor R-8M Plus/R-8C Plus R-12C Plus
S 8-15 Yes
S 6-50 Yes
S 4-100 Yes
S 24-15 Yes
A 6-50 Yes
A 4-100 Yes
A 24-15 Yes
AR 24-75 HE Yes
AR 12-75 HE Yes
AR 12-2 Yes
AR 24-2 Yes
AR 8-5 Yes
P 4-8 Yes
Swing Out Rotors for R-8C Plus & R-8M Plus
Swing Out Rotor S 4-100
Max. Speed RPM 4000
Max RCF (g) 2500
Metal Buckets suitable for Swing Out Rotor S 4-100
B 100 B 9-5
Image of Tube
Tube Capacity (ml) 100 50 50 30 15 15 10 6 5
Type of Tube Glass Glass Falcon® Glass Glass Falcon® Vacutainer® Vacutainer® Vacutainer® short
x L (mm) 45.5 x 104 30 x 110 29 x 116 24 x 110 17 x 110 16.5 x 120 15.5 x 106 12.5 x 106 12.5 x 81
Bucket No. B 100 B 100 B 100 B 100 B 100 B 100 B 100 B 100 B 9-5
Insert Cat No. RA 157 RA 161F RA 158 RA 166 RA 160F RA 168 RA 167
Tubes supplied Yes Yes No Yes Yes No No No No
No of tubes/Insert 1 1 1 1 3 3 3 4 9
No of tubes/rotor 4 4 4 4 12 12 12 16 36
Swing Out Rotor S 8-15
Max. Speed RPM 4500 Max RCF (g) 3440
Image of Tube
Tube Capacity (ml) 15 13 8 6 5 5 3
Type of Tube Glass Borosil Glass Glass Vacutainer® Glass Vacutainer® short Glass
x L (mm) 17 x 110 15 x 125 12 x 100 12.5 x 106 12 x 75 12.5 x 81 10 x 75
Insert Cat No. _ _ RA 154 RA 163 RA 153 RA 162 RA 152
Tubes supplied Yes No Yes No Yes No Yes
No of tubes/Insert 1 1 1 1 1 1 1
No of tubes/rotor 8 8 8 8 8 8 8
Swing Out Rotor S 6-50
Max. Speed RPM 4500
Max RCF (g) 3530
Image of Tube
Tube Capacity (ml) 50 30 15 15 10
Type of Tube Glass Glass Falcon® Glass Vacutainer®
x L (mm) 30 x 110 24 x 110 16.5 x 120 17 x 110 15.5 x 106
Insert Cat No. _ RA 502 RA 501F RA 501 RA 164
Tubes supplied Yes Yes No Yes No
No of tubes/Insert 1 1 1 1 1
No of tubes/rotor 6 6 6 6 6
Swing Out Rotor S 24-15
Max. Speed RPM 4500
Max RCF (g) 3330
Image of Tube
Tube Capacity (ml) 15 8 6 5 5 3
Type of Tube Glass Glass Vacutainer® Glass Vacutainer ® short Glass
x L (mm) 17 x 110 12 x 100 12.5 x 106 12 x 75 12.5 x 81 10 x 75
Insert Cat No. _ RA 154 RA 163 RA 153 RA 162 RA 152
Tubes supplied Yes Yes No Yes No Yes
No of tubes/Insert 1 1 1 1 1 1
No of tubes/rotor 24 24 24 24 24 24
Angle Rotors for R-8C Plus & R-8M Plus
Angle Rotor A 4-100
Max. Speed RPM 6000
Max RCF (g) 4550

Image of Tube
Tube Capacity (ml) 100 50 50 15 15 15 10 6
Type of Tube Plastic Falcon® Glass Glass Glass Falcon® Vacutainer® Vacutainer®
x L (mm) 45.5 x 104 29 x 116 30 x 110 17 x 110 17 x 110 16.5 x 120 15.5 x 106 12.5 x 106
Insert Cat No. _ RA 161F RA 161 RA 160 RA 166 RA 160F RA 168 RA 167
Tubes supplied Yes No Yes Yes Yes No No No
No of tubes/Insert 1 1 1 1 3 1 3 4
No of tubes/rotor 4 4 4 4 12 4 12 16
Angle Rotor A 6-50
Max. Speed RPM 6000
Max RCF (g) 4700

Image of Tube
Tube Capacity (ml) 50 30 15 15 10
Type of Tube Plastic Glass Glass Falcon ® Vacutainer ®
x L (mm) 30 x 100 24 x 110 17 x 110 16.5 x 120 15.5 x 106
Insert Cat No. _ RA 502 RA 501 RA 501F RA 164
Tubes supplied Yes Yes Yes No No
No of tubes/Insert 1 1 1 1 1
No of tubes/rotor 6 6 6 6 6
Angle Rotor A 24-15
Max. Speed RPM 6000
Max RCF (g) 5070

Image of Tube
Tube Capacity (ml) 15 8 6 5 5 3
Type of Tube Plastic Glass Vacutainer® Glass Vacutainer® short Glass
x L (mm) 17 x 102 24 x 100 12.5 x 106 12 x 75 12.5 x 81 10 x 75
Insert Cat No. _ RA 154 RA 163 RA 153 RA 162 RA 152
Tubes supplied Yes Yes No Yes No Yes
No of tubes/Insert 1 1 1 1 1 1
No of tubes/rotor 24 24 24 24 24 24
Rotors for R-12C Plus
Angle Rotor AR 12-2
Max speed RPM 16000
Max RCF (g) 16140

Image of Tube >
Tube Capacity (ml) 2 1 0.5 0.2
Type of Tube Micro Micro Micro Micro
x L (mm) No RE 2-1 RE 2-05 RE 2-02
Insert Cat No. 1 1 1 1
Tubes supplied 12 12 12 12
No of tubes/Insert 11 x 46 7.5 x 49 7.5 x 31 6 x 22
No of tubes/rotor No No No No

(Rotor supplied with all suitable inserts)

Angle Rotor AR 24-2
Max speed RPM 15000
Max RCF (g) 21000

Image of Tube
Tube Capacity (ml) 1.5 1 0.4
Type of Tube Micro Micro Micro
x L (mm) No RE 2-1 RE 2-04
Insert Cat No. 1 1 1
Tubes supplied 12 12 12
No of tubes/Insert 10.5 x 42 7.5 x 49 5.5 x 50
No of tubes/rotor No No No
Angle Rotor AR 8-5
Max speed RPM 11850
Max RCF (g) 13500

Image of Tube
Tube Capacity (ml) 5 4 2
Type of Tube Micro Micro Micro
x L (mm) No RE 5-4 RE 5-2
Insert Cat No. 1 1 1
Tubes supplied 8 8 8
No of tubes/Insert 16 x 59 10 x 75 10 x 47
No of tubes/rotor No No No
Reading Device RD 24-75
W x D x H 127 x 84 x 18
