Rotary Shakers
| Laboratory Products | Rotary Shakers

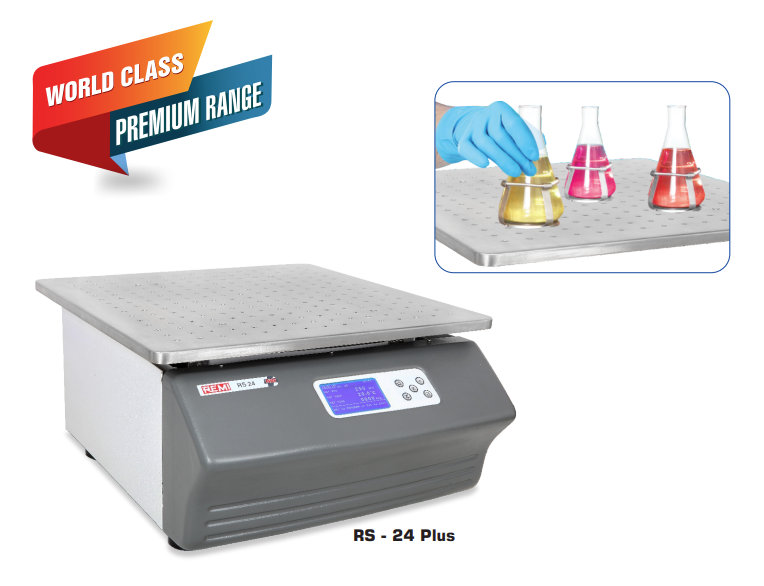

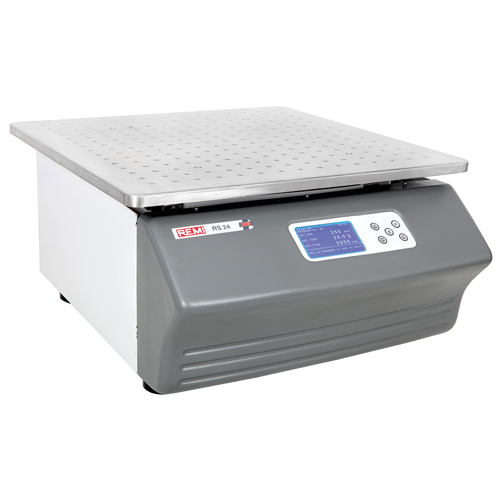

RS – 24 Plus
These Shakers are ideal for mixing and development of cultures, chemicals, solvents, and assays etc. in Microbiological, Cell Culture & Life Science laboratories.
The Unit has base assembly fabricated from heavy mild steel sections. Brushless Induction drive motor with frequency drive makes the unit suitable for continuous non-stop operation. Step less electronic frequency control ensures gentle start and maintains preset speed. Compact counter balanced drive mechanism ensures high stability and reliability even in continuous operation & uneven load distribution.
Salient Features
- 4″ Large LCD display
- Universal Platform with rounded corners to accommodate interchangeable clamps of assorted sizes
- Brushless induction motor with VFD speed control
- Elegant Plastic front
- Variable speed 20 -300 RPM
- Shaking amplitude 40 mm
- Auto start after power resumption
| Technical Data | ||||||||
| Models | Platform Size | Max. Volume | Max. No. of clamps (to be ordered separately) | |||||
|---|---|---|---|---|---|---|---|---|
| 2000 ml. | 1000 ml. | 500 ml. | 250 ml. | 150 ml. | 100ml/ 50ml | |||
| RS-24 Plus | x 24 | 18 Litres | 9 | 16 | 25 | 36 | 49 | 64 |
| Supply: 220-240 Volts 50 Hz Single Phase. | ||||||||
RS – 24 BL, RS – 36 BL
These Shakers are ideal for mixing and development of cultures, chemicals, solvents, and assays etc. in Microbiological, Cell Culture & Life Science laboratories.
The Unit has base assembly fabricated from heavy mild steel sections. Brushless Induction drive motor with frequency drive makes the unit suitable for continuous non-stop operation. Step less electronic frequency control ensures gentle start and maintains preset speed.
Compact counter balanced drive mechanism ensures high stability and reliability even in continuous operation & uneven load distribution.
Salient Features
- Variable speed from 20 RPM to 300 RPM.
- Universal Platform to accommodate interchangeable clamps of assorted sizes for different capacity of flasks.
- Digital display of speed with presetting facility.
- Shaking amplitude 40 mm.
- Automatic restart at preset speed in case of power failure.
Note:- Economical Models with fixed speed of 180 RPM are also available.
| Technical Data | |||||||
| Models | Platform Size | Max. Volume | Max. No. of clamps | ||||
|---|---|---|---|---|---|---|---|
| 1000 ml. | 500 ml. | 250 ml. | 150 ml. | 100 ml. / 50 ml. | |||
| RS-24 (BL) | 24″ x 24″ | 16 Litres |
16 |
25 | 36 | 49 | 64 |
| RS-36 (BL) | 36″ x 36″ | 36 Litres |
36 |
49 | 64 | 81 | 100 |
| Supply. 220-240 Volts. 50 Hz. SINGLE PHASE. | |||||||
