Blood Bank Refrigerator Manufacturers and Exporters
| Healthcare Products | Blood Bank Refrigerator
Blood Storage Cabinet / Blood Bank Refrigerator
REMI Blood Storage Refrigerators are specially designed to meet the storage requirements of whole Blood & Packed Red cells.
Cabinet Construction:
Durable, corrosion resistant materials are used to provide years of reliable performance. The outer body is made up of powder Coated CRCA Steel & internal cabinet of Stainless Steel 304 (AISI Grade, Non Corrosive and Non Magnetic). The unit is fitted in heavy duty castor wheels for ease of movement.
Temperature Control & Monitoring:
Microprocessor integrated system provides excellent temperature accuracy. 7 days circular chart recorder & audio visual alarm system helps to indicate storage conditions continuously.
Variants
REMI Blood Storage Refrigerators are available as BR &. BR Ultra variants. Both the variants are available in different capacities ranging from 72 bags to 400 Bags capacities. Also higher capacity variants available for Blood Centers handling larger volumes.

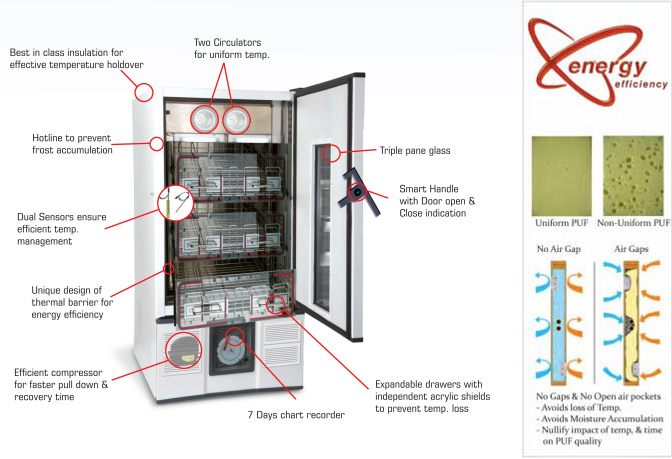

Salient Features:
- Auto defrost mechanism to prevent frost formation
- Self-diagnosis & display of errors
- Safety Thermostat for avoiding negative temperature
- Triple pane glass to prevent temperature loss
- Settable parameters to
- Temperature set point
- High / low temperature alarm point
- Buzzer off time
- Audio Visual alarms for
- Temperature high / low
- Power failure
- Sensor open / Short
- Door Open
- Compressor on (only visual)
- Power on (only visual)
- Compatibility with REMI XS for wireless data logging
Touch Screen Display
- 7″ Multicolored touch screen with user interface
- Displays temp. alarms. date & time
- Data logging vith multiple option & transfer via Ethernet, USB port
- PLC (Programabte logic controller) with internal memory of 1500 records
- Battery backup for display, alarms & off-line data logging
- Password protected settings for system control & notifications
- Onscreen access for data logs, temperature graph, system status, troubleshooting etc.
- REMI ‘Datasoft’ software for generating various reports, SMS alerts & analysis Optionall
| Technical Specifications | ||||||||||
| Particulars |
BR-50
|
BR-120 |
BR-120 Ultra
|
BR-180
|
BR-180 Ultra
|
BR-240
|
BR-240 Ultra |
BR-300
|
BR-300 Ultra | |
| Temperature Control | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |||||
| Display | LED | LED | 7″ LCD Touch Screen | LED | 7″ LCD Touch Screen | LED | 7″ LCD Touch Screen | LED | 7″ LCD Touch Screen | |
| Internal Dimensions W x D x H [mm] |
540 x 520 x 650 |
660 x 765 x 650 |
660 x 765 x 850 |
660 x 765 x 1050 |
660 x 765 x 1250 | |||||
| External Dimensions W x D x H [mm] |
640 x 685 x 1185 |
800 x 945 x 1205 |
800 x 945 x 1435 |
800 x 945 x 1635 |
800 x 945 x 1835 | |||||
| Capacity [Liters] |
158 |
330 |
430 |
530 |
630 | |||||
| Capacity of Blood Bags (Approx) |
Up to 72 |
Up to 150 |
Up to 250 |
Up to 325 |
Up to 400 | |||||
| Number of Drawers |
2 |
2 |
3 |
4 |
5 | |||||
| Temperature | Preset at 4°C ± o.5°C | |||||||||
| Temperature Alarm | ≥ 6°C & < 2°C, Audio Visual Alarm | |||||||||
| Internal Body Material | Stainless Steel 304 ( AISI Grade, Non Corrosive, Non Magnetic ) | |||||||||
| External Body Material | Powder Coated CRCA Steel | |||||||||
| Insulation |
50mm |
80 mm on body, 100 mm on Door, CFC free polyurethane foam | ||||||||
| Illumination | Fluorescent Lamp | |||||||||
| Recorder | Seven Days Circular Chart Recorder | |||||||||
| Noise Level | Less Than 65 db(A) | |||||||||
| Battery Backup (Controller) | Rechargeable, Maintenance Free battery for Display, Alarm system & Chart recorder | |||||||||
| Recommended voltage stabilizar | VS 01 | VS 02 | VS 03 | |||||||
| Electrical | 220-240 Volts, 50Hz, SINGLE PHASE | |||||||||
| Compliance | EN 60601-1, EN 60601-1-2, CE, US FDA | |||||||||
